Building A Pinhole Camara

Shivam Parikh, Khoa Hoang, Ajay Ramesh, September 13, 2018

Home Build Results Manual Edits B&W Raw
Home Build the Camera Results Bells and Whistles Raw Images


Attention: We have some dope bells and whistles, so please take a look at our results section below!

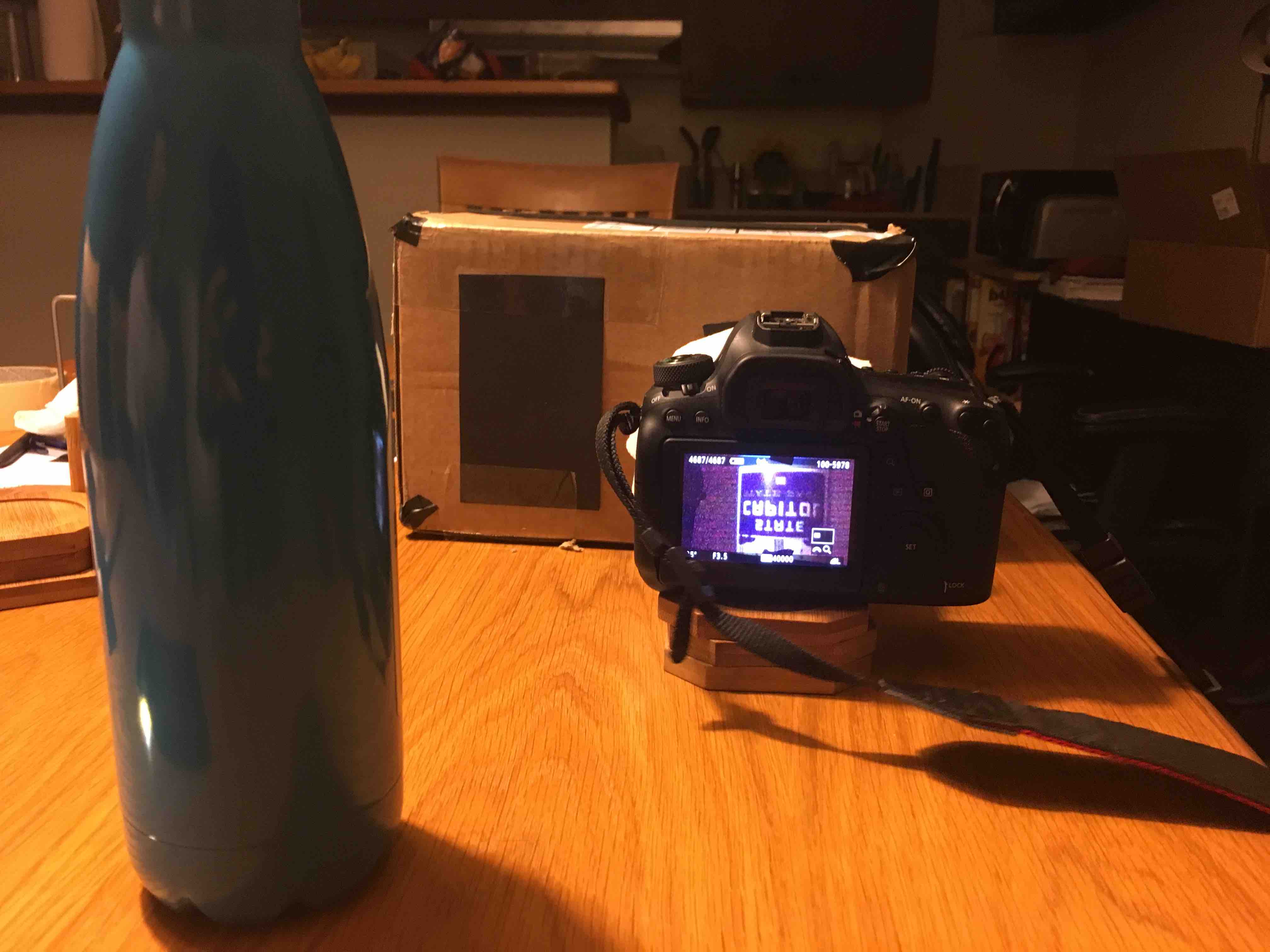

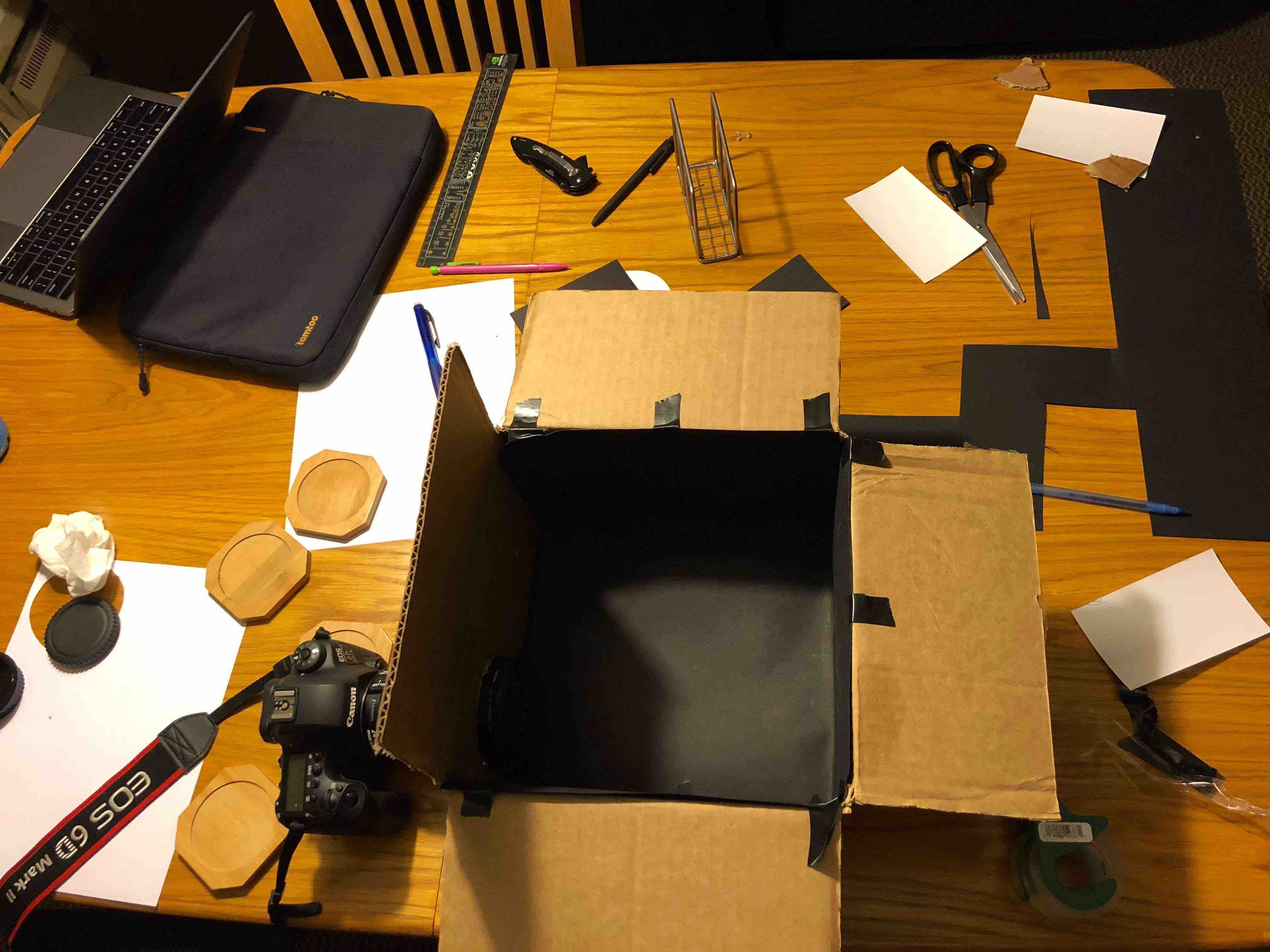

A pinhole camera lets light through a small 1mm-5mm hole known as the "pinhole" and forms an image on the other side of the pinhole. Instead of being scattered, light entering through the pinhole is "organized" such that the 3D world on the other side of the pinhole is reconstructed in 2D. This project involves building a pinhole camera with a cardboard box and some paper. We use a DSLR camera with long exposure to digitally capture the image formed on the pinhole camera's imaging plane.


A.... mess

Artificial Light

Finally.... phewwww

Sniper in ambush

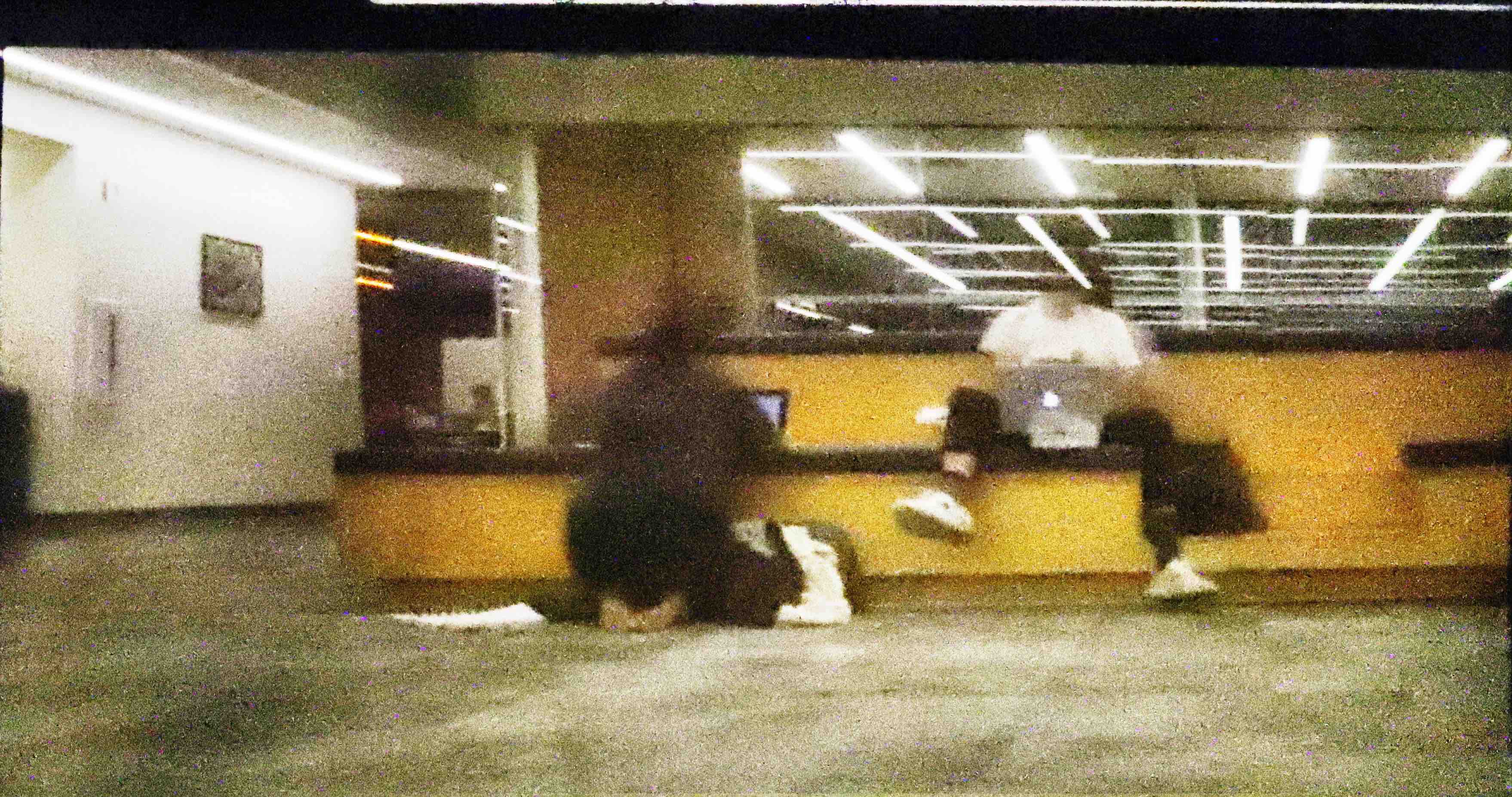

These are pictures after being cropped, rotated and enhanced.

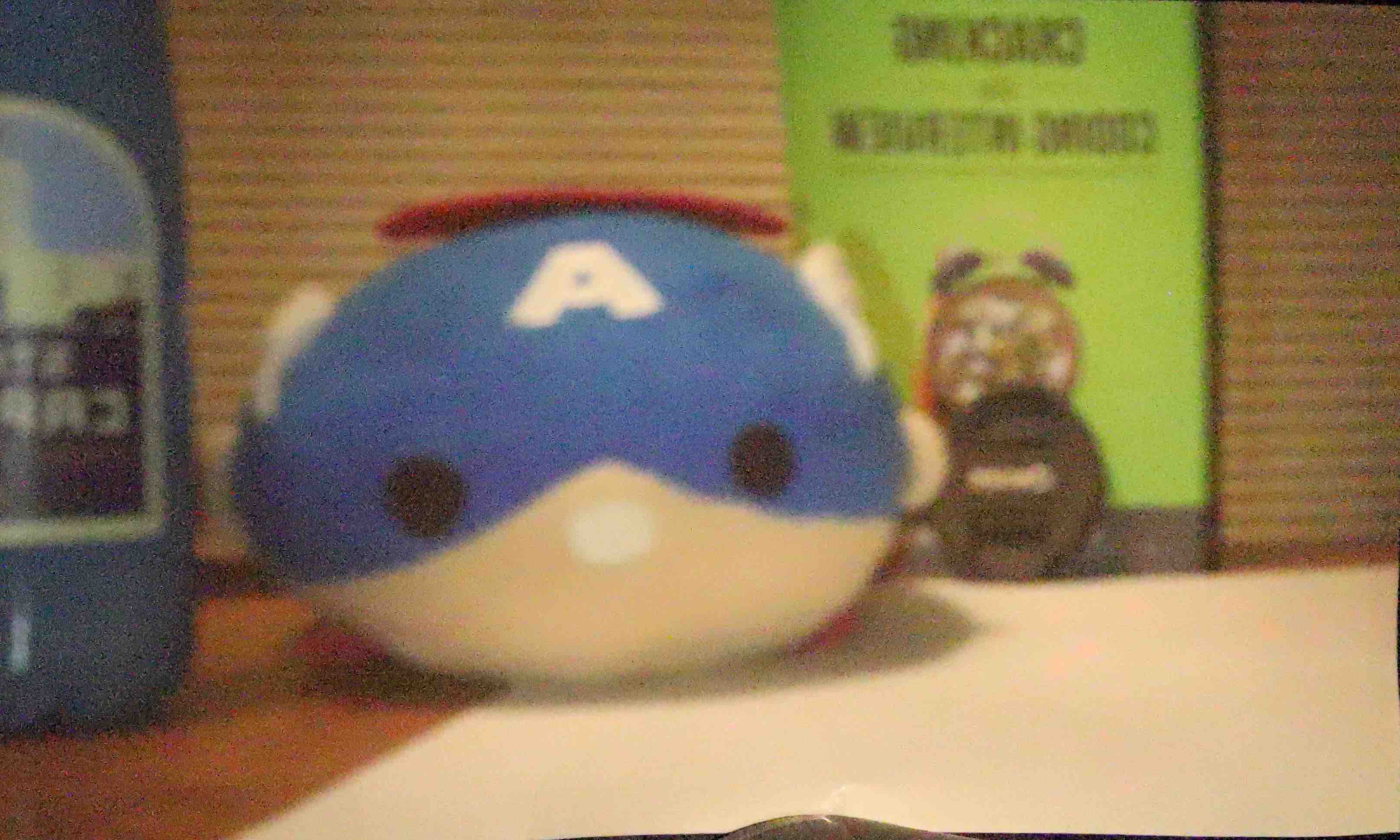

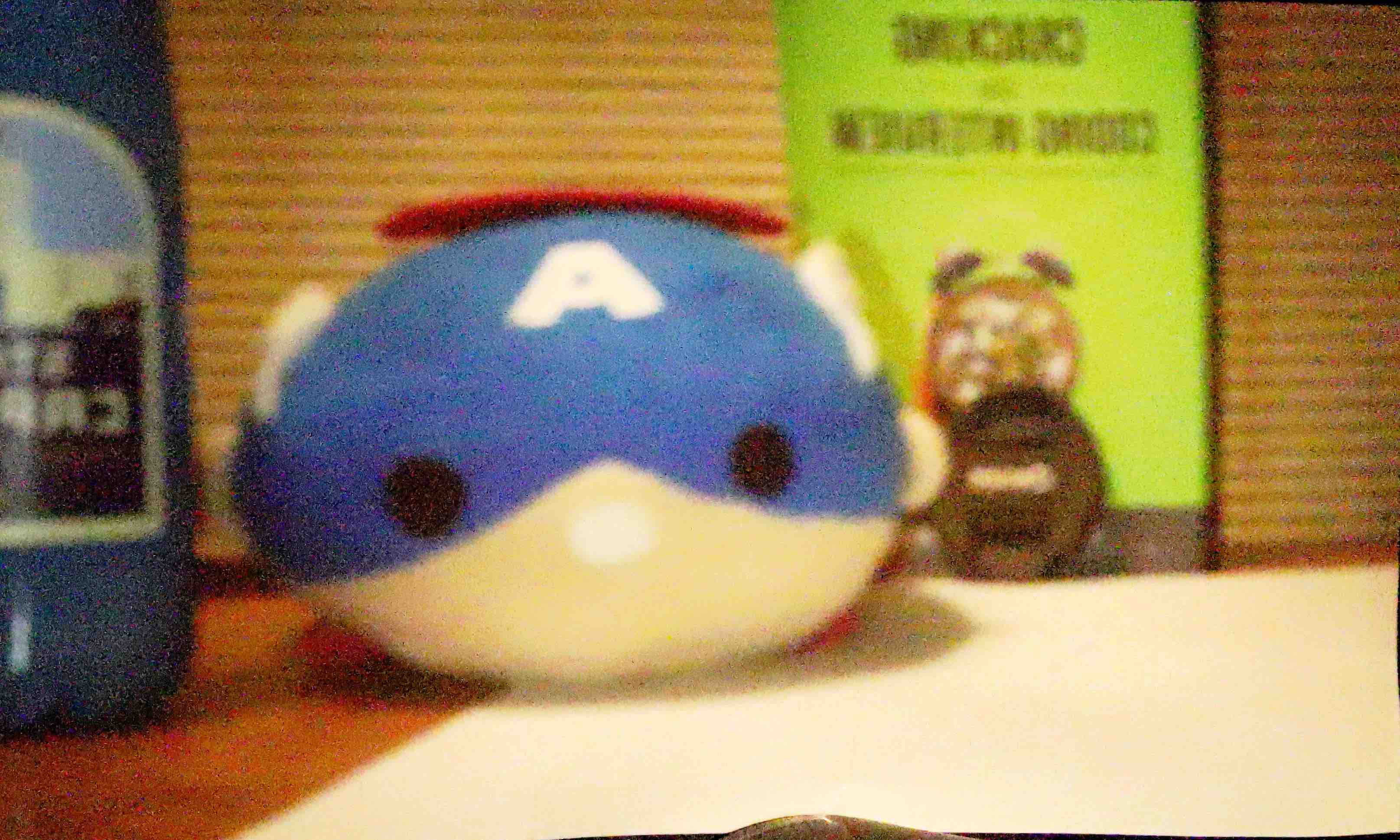

Captain Ameicaaaaaaaaaaa

Is it Doe, my dear?

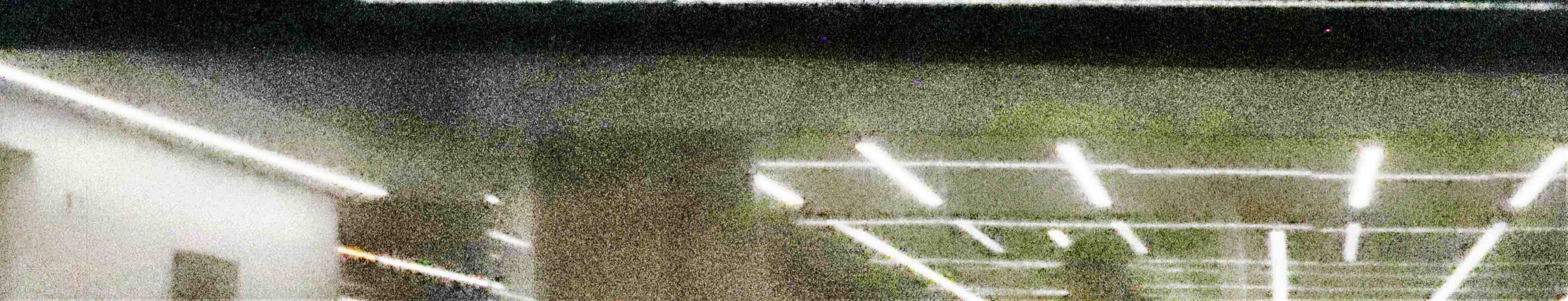

A grid of lightsabers?

ughhh, can't see their faces.

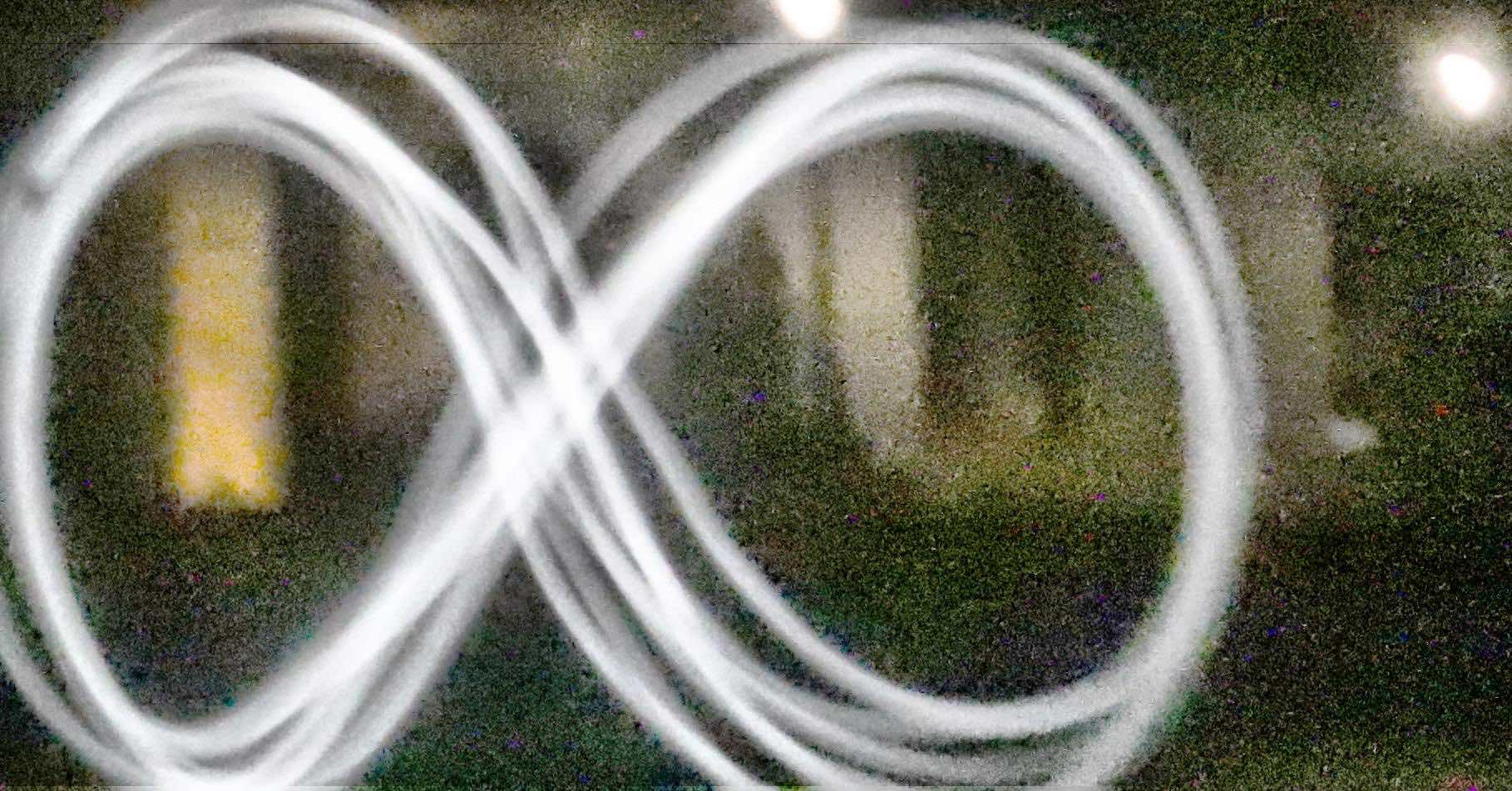

Hope I don't get into this loop, I wanna get outta schoollll

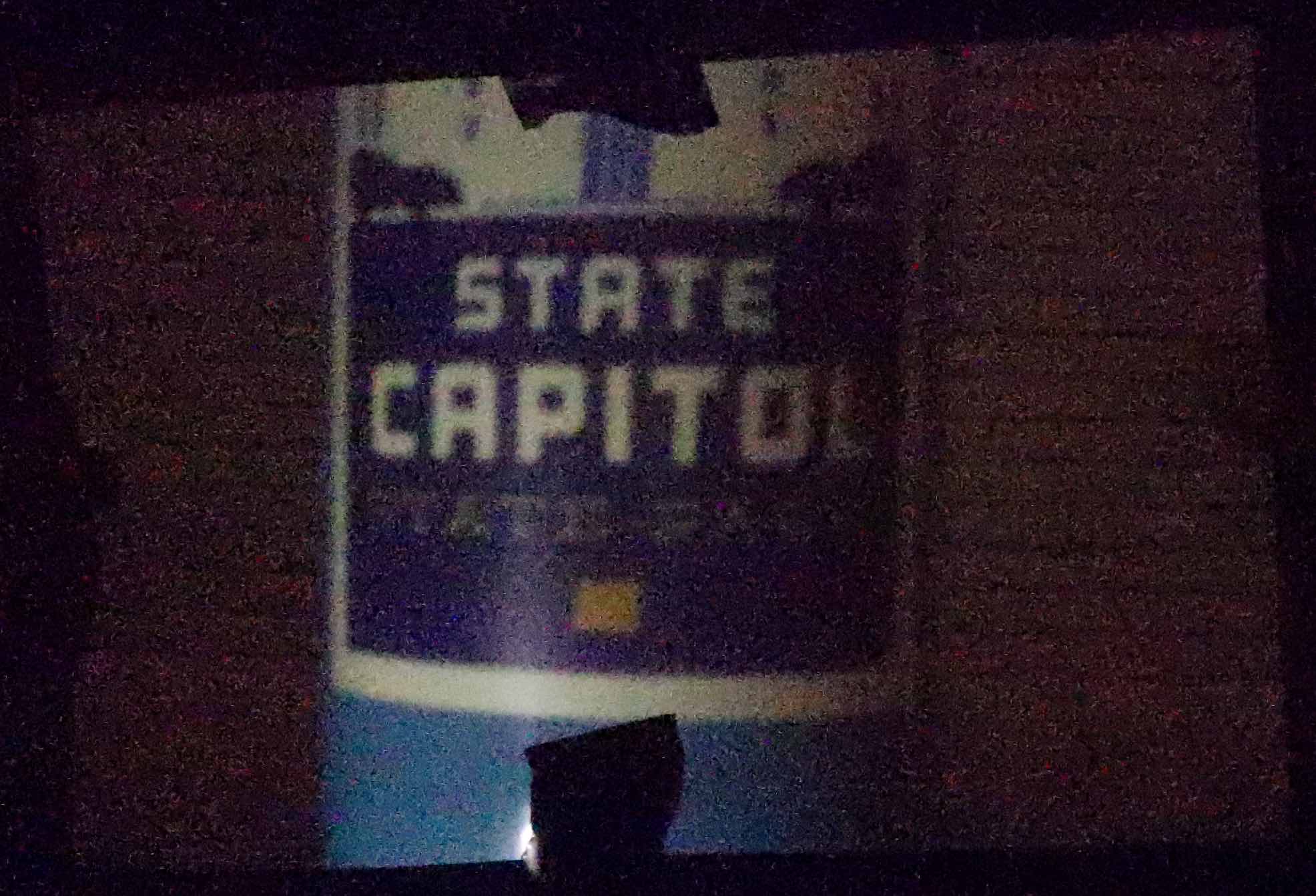

2.5 Some Manual Edits in Lightroom to optimize what we captured

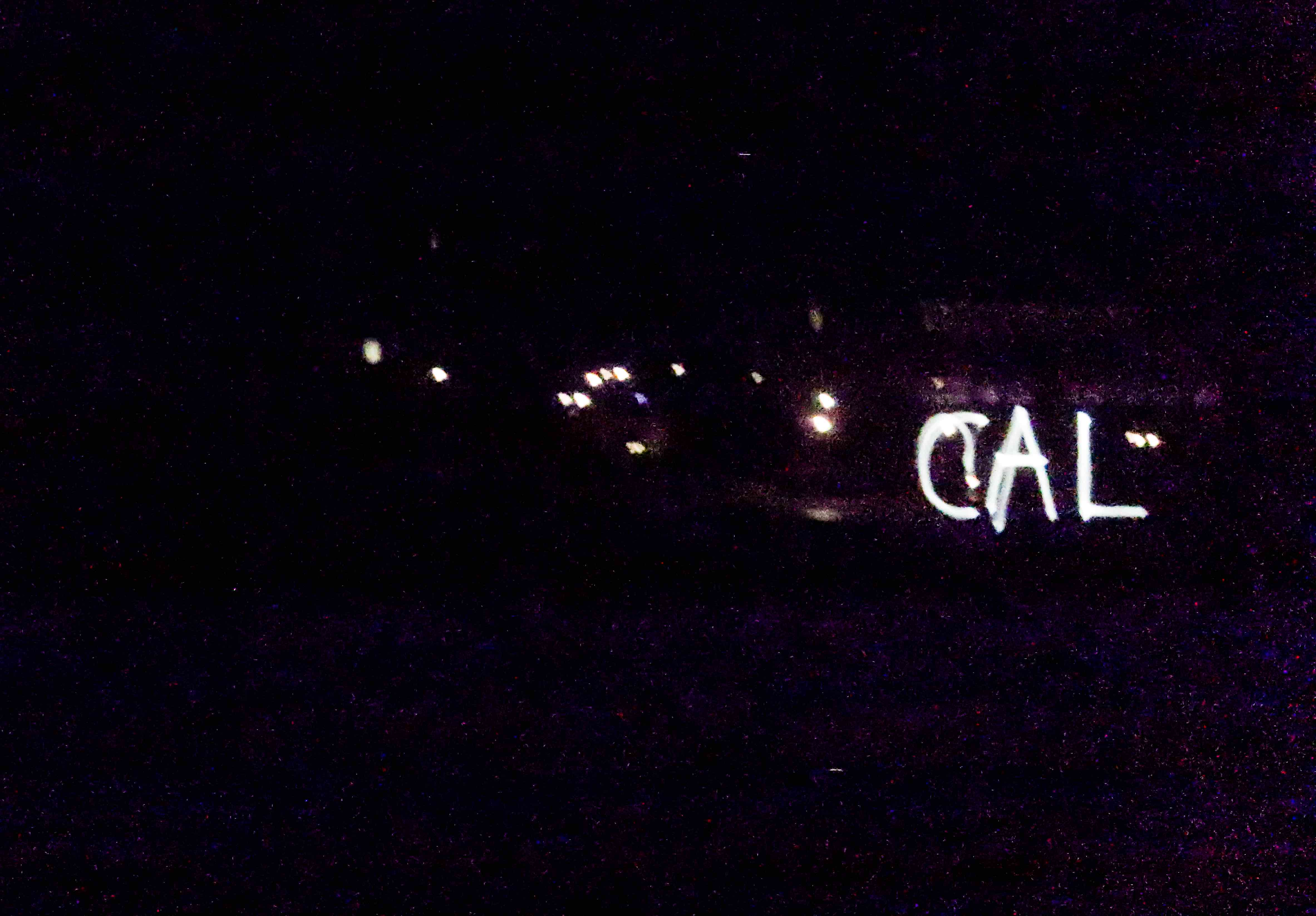

These are also some of our results, but because of the dark nature of them, our automatic editing algorithms were not great and could not improve the quality. Software like LightRoom really helped bring out some of the best features in these images.


3.1 Auto Cropping

First Approach - Matlab

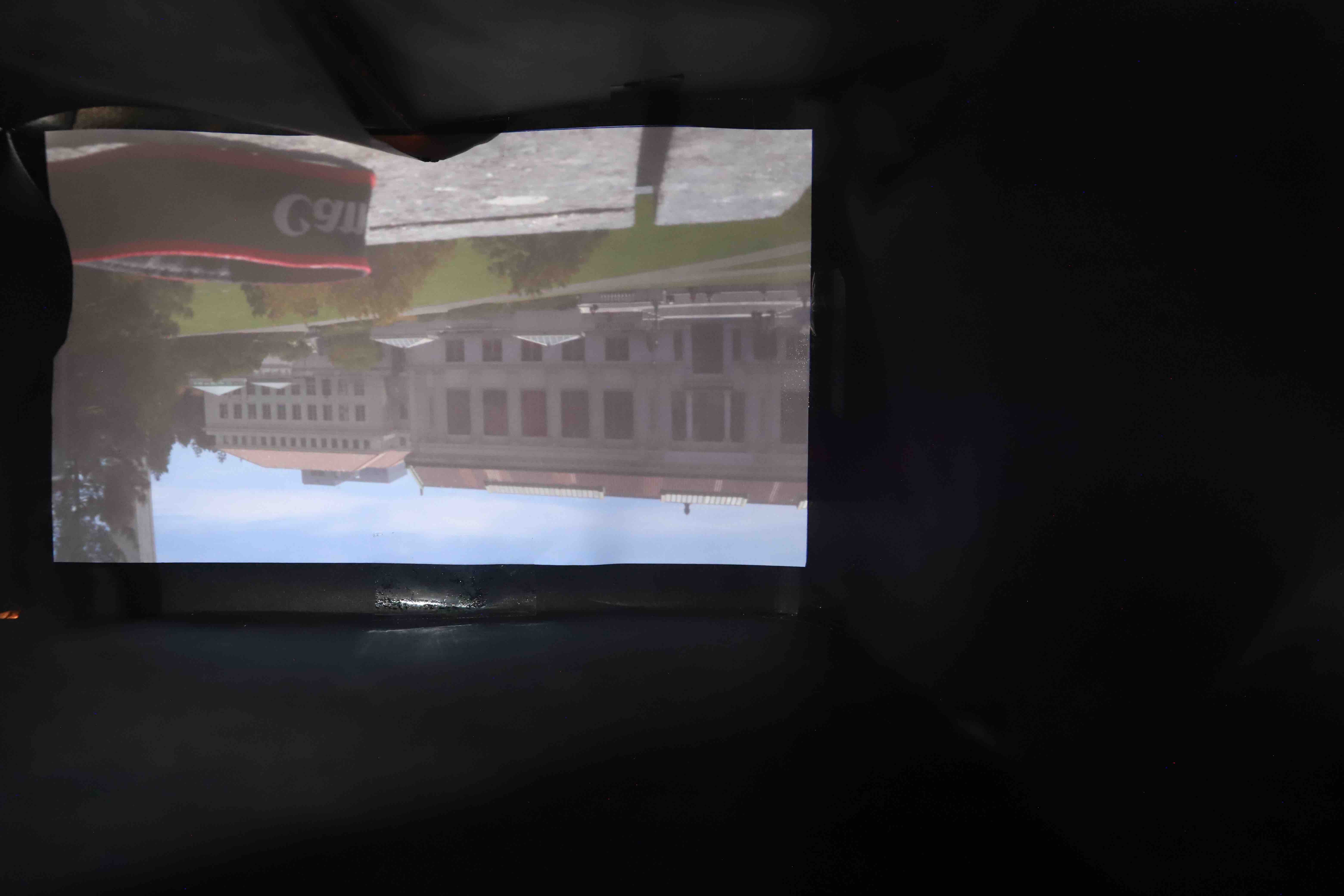

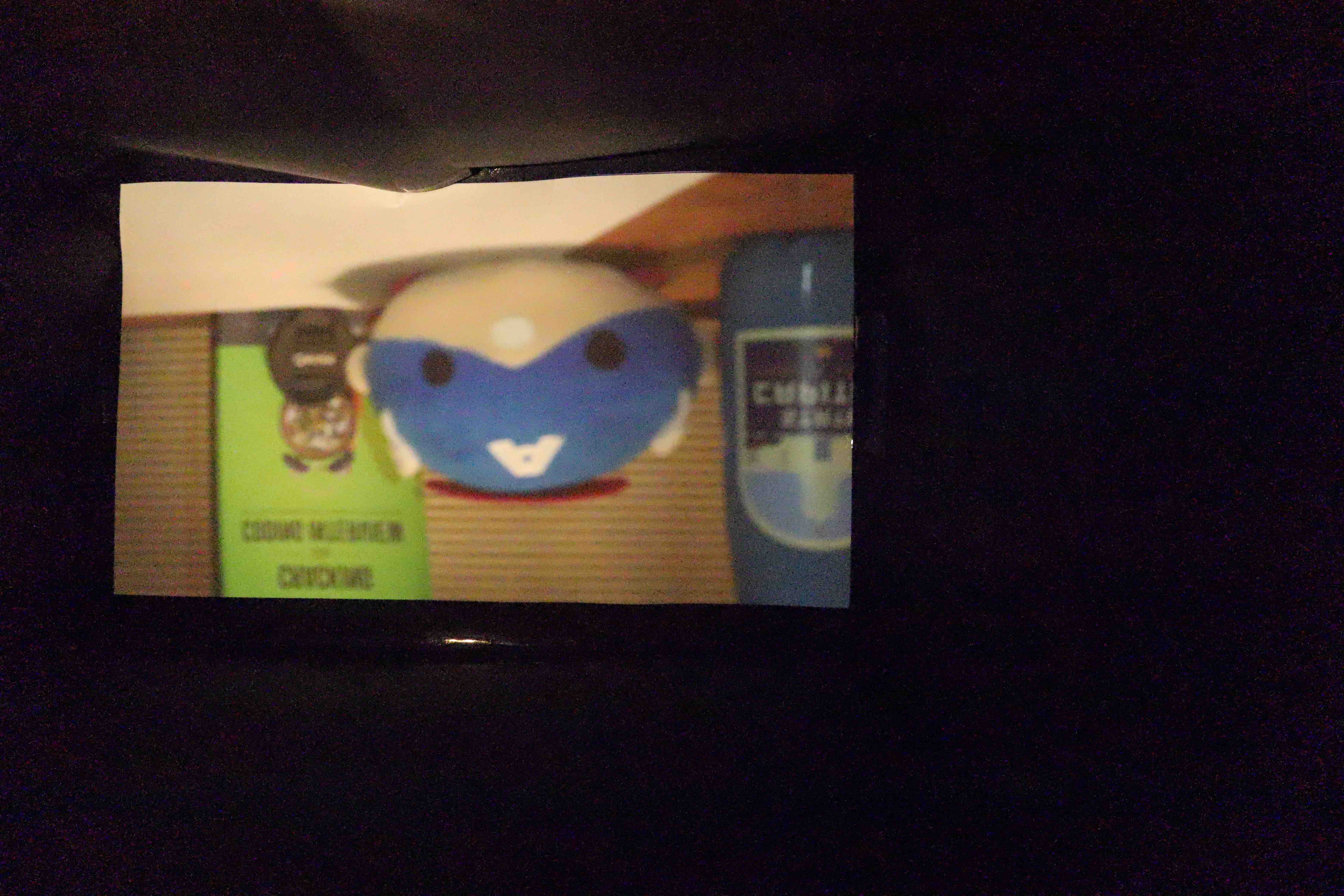

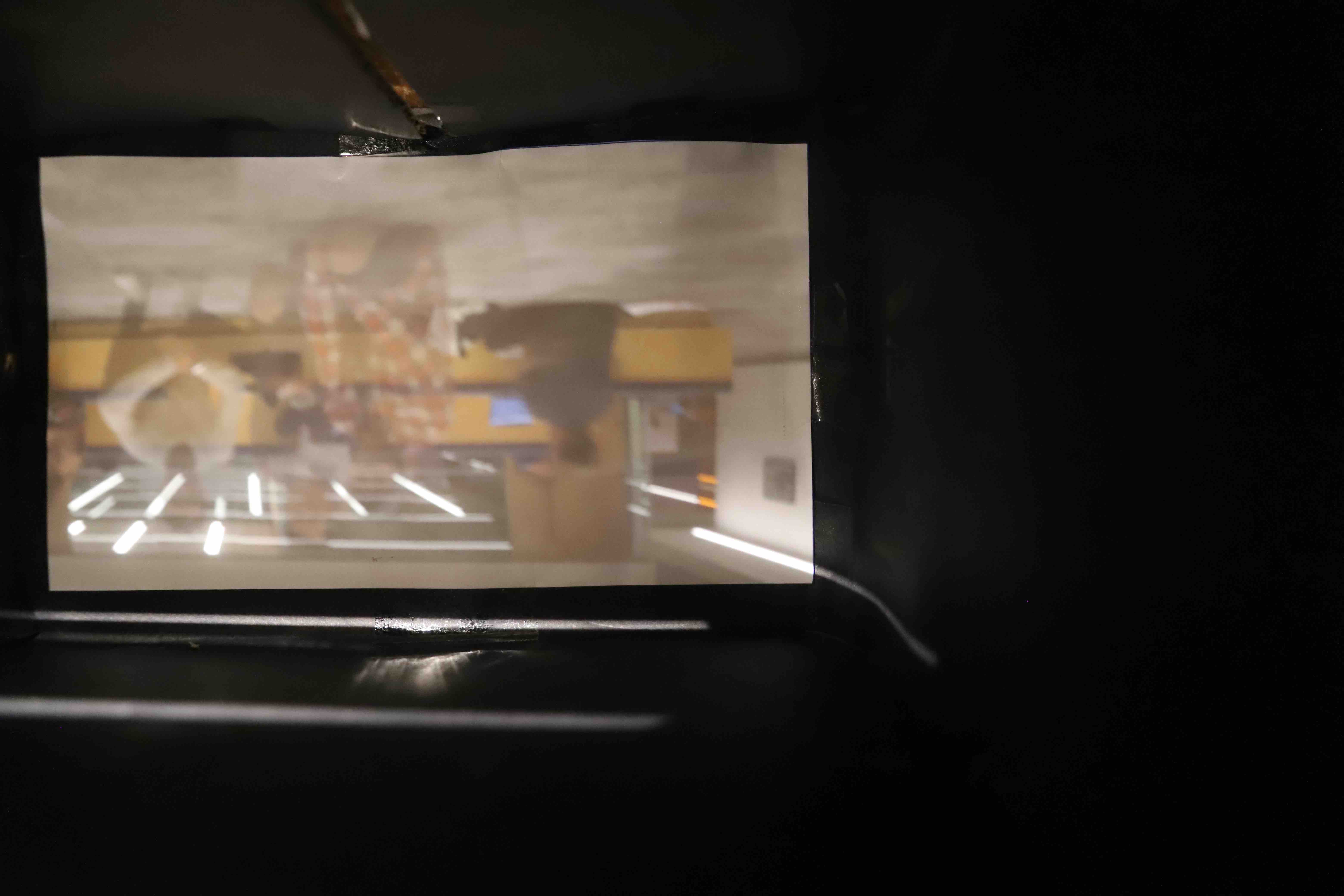

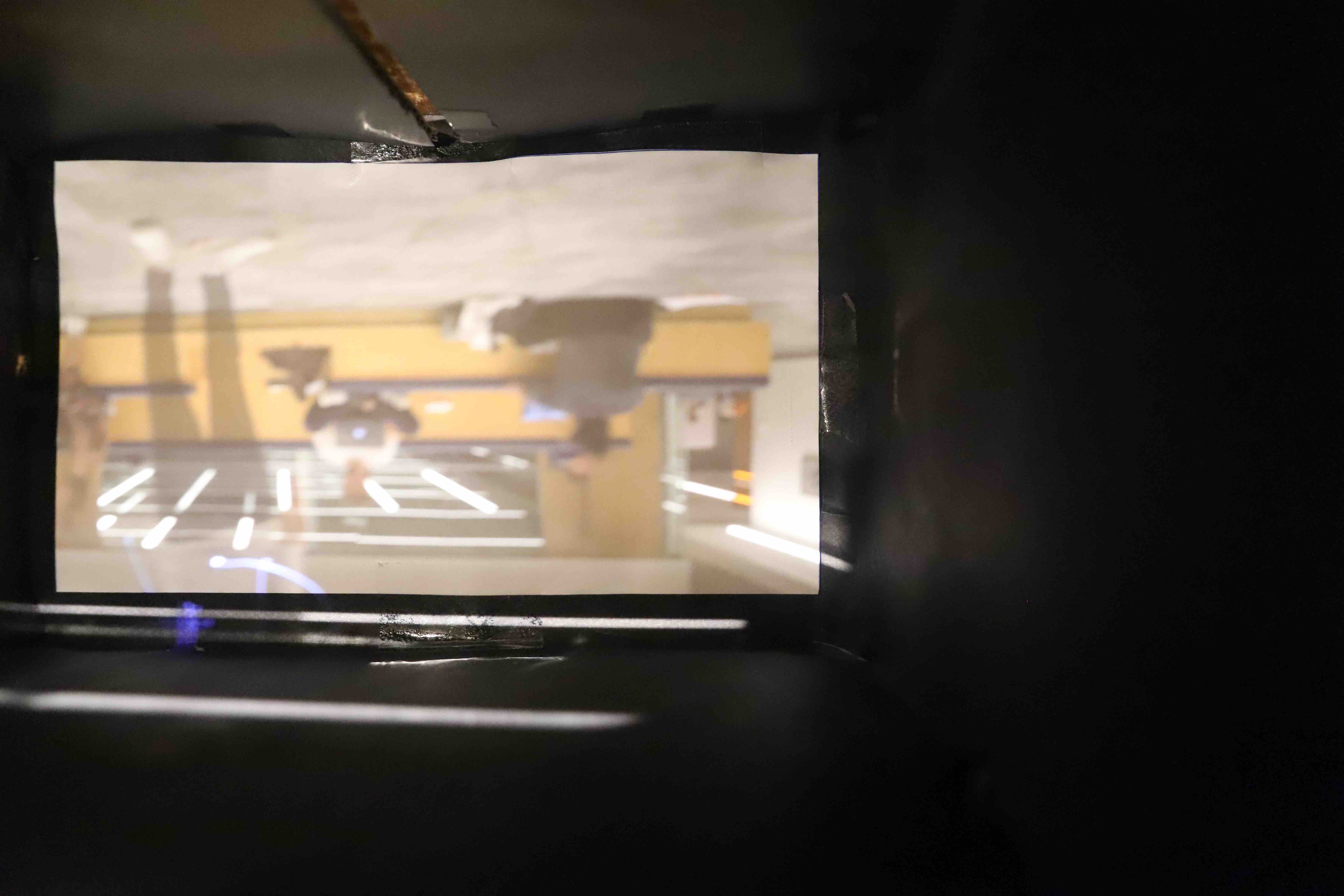

Autocropping aims to localize the image plane of the pinhole camera inside the cardboard box, automatically. Here's an image of what the imaging plane of the pinhole camera looks like when captured by the DSLR.

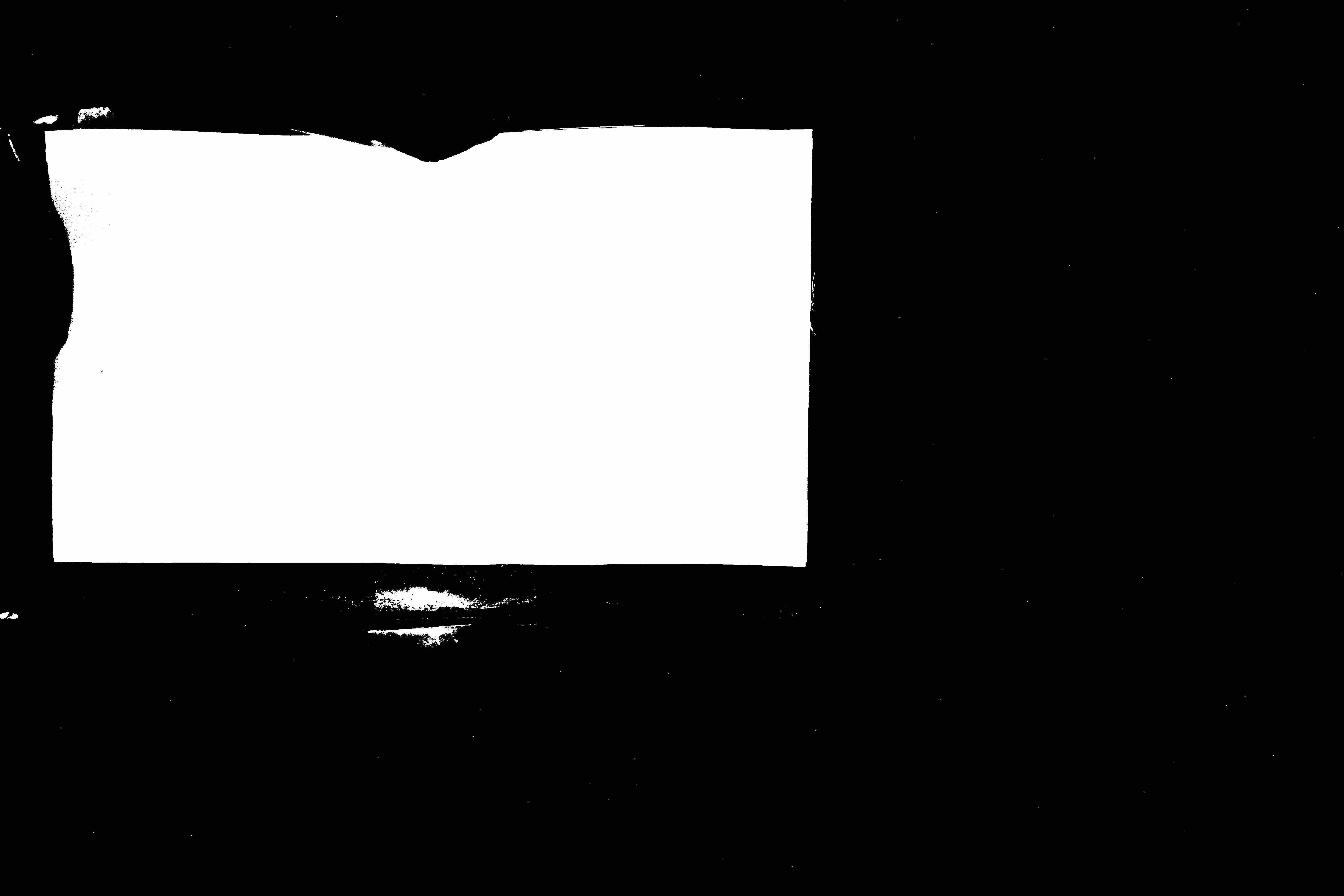

We recognize that the pixel intensities where the image is formed is much higher than the intensities of the pixels around it. This suggests a need for a global thresholding in order to binarize the image. This is what the binarized image looks like.

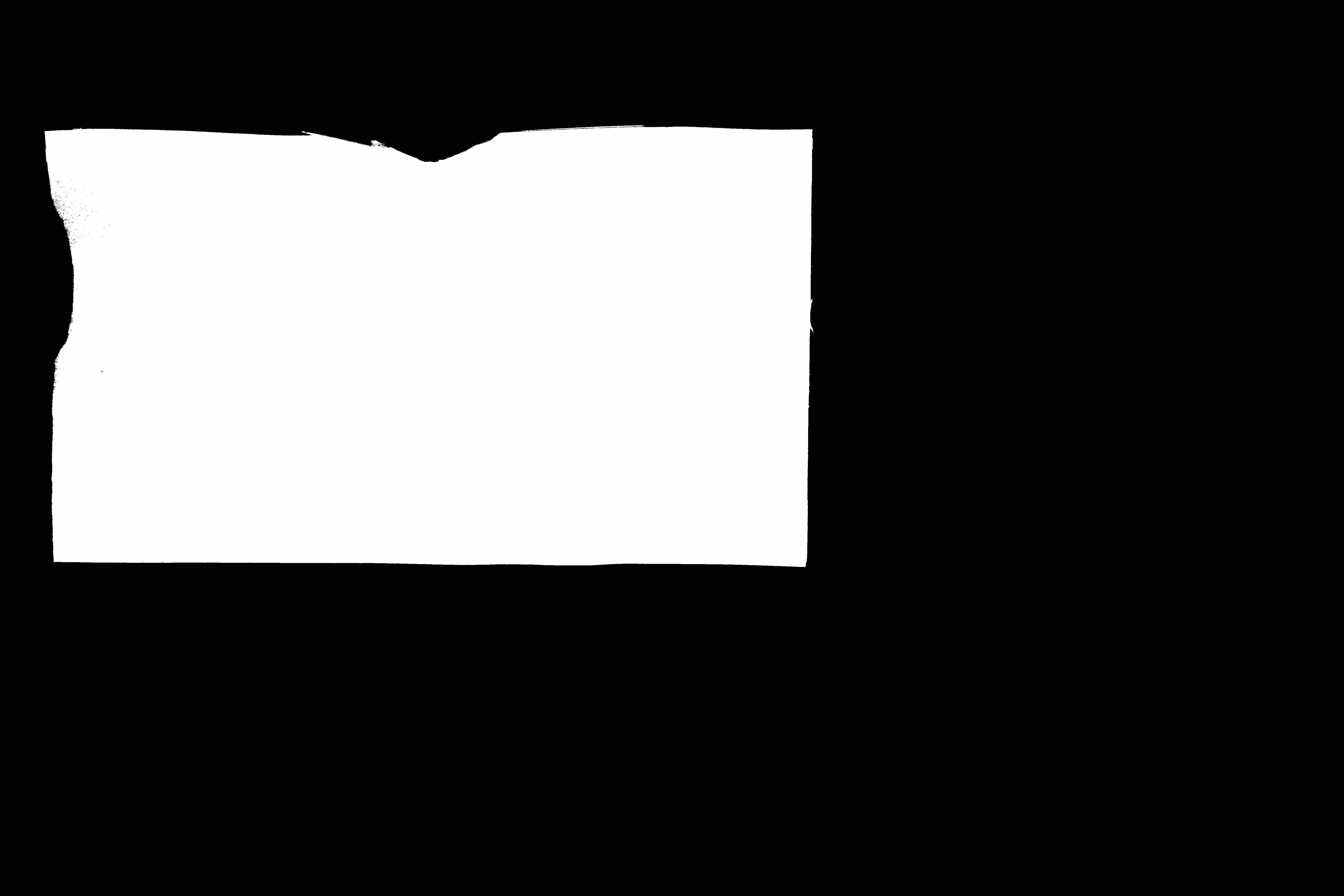

You may notice that there are still some white blobs which don't belong to the imaging plane we're interested in. We use the MATLAB function bwareaopen to denoise the image by removing connected components of white pixels smaller than a specified area. Since the connected component we are interested in is much larger than the noise, this is easy. Here's the result of denoising.

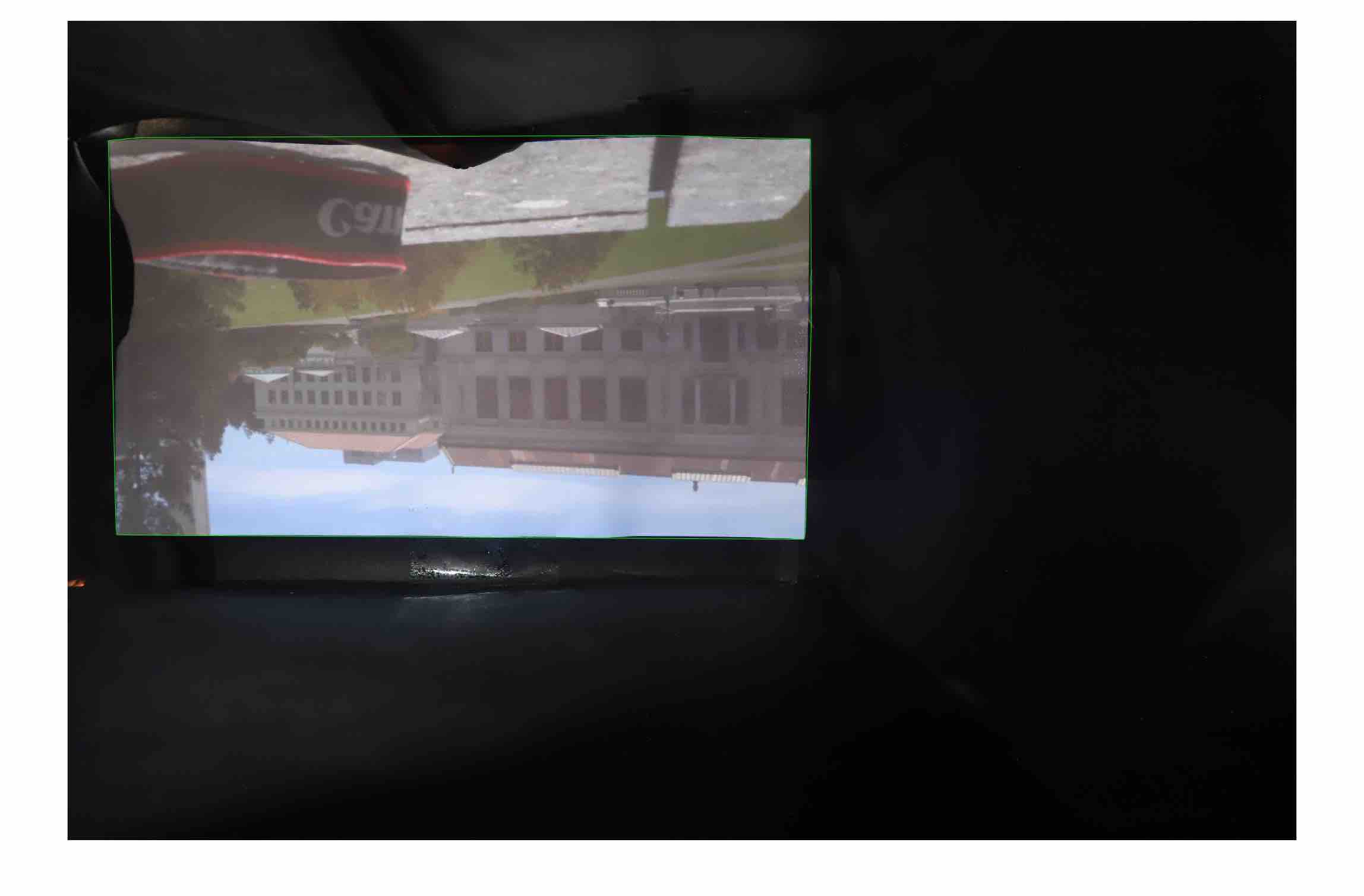

Now that we have segmented the region of interest, we need to compute a crop region. We recognize that the imaging plane is a convex shape, so we can use the MATLAB function convhull to find the convex hull which is a tight set of vertices of a polygon surrounding the region of interest.

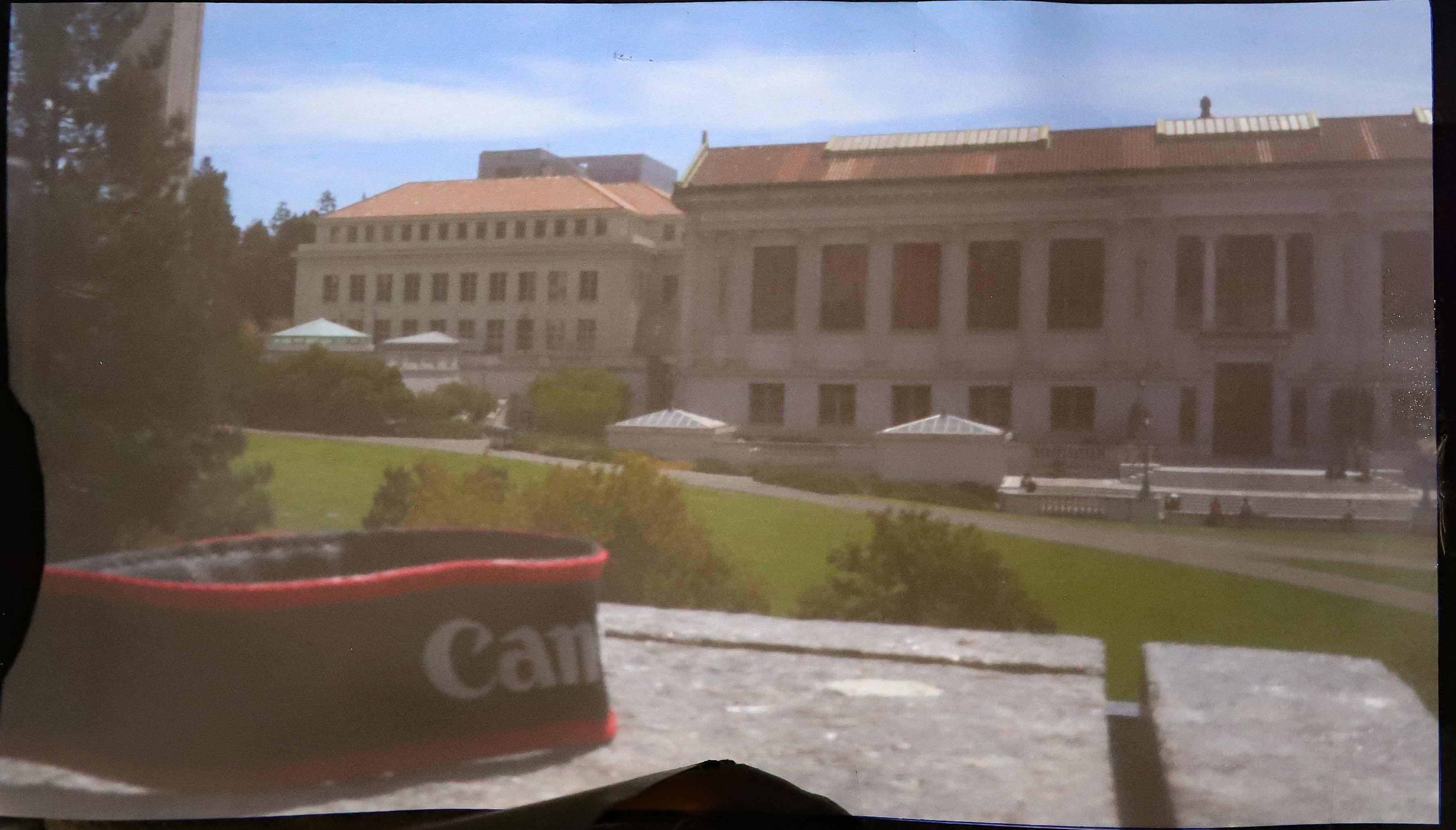

Finally, we find the closest rectangle to the computed convex hull (which we assume to be rectangular-ish) and do some color correction, described in the next section. Here's the output image of our algorithm.

Second Approach - Python

This approach searches for rows and columns which have higher intensities than or rows and columns and return the four corners of the most recognized parts of the image.

This is the original image.

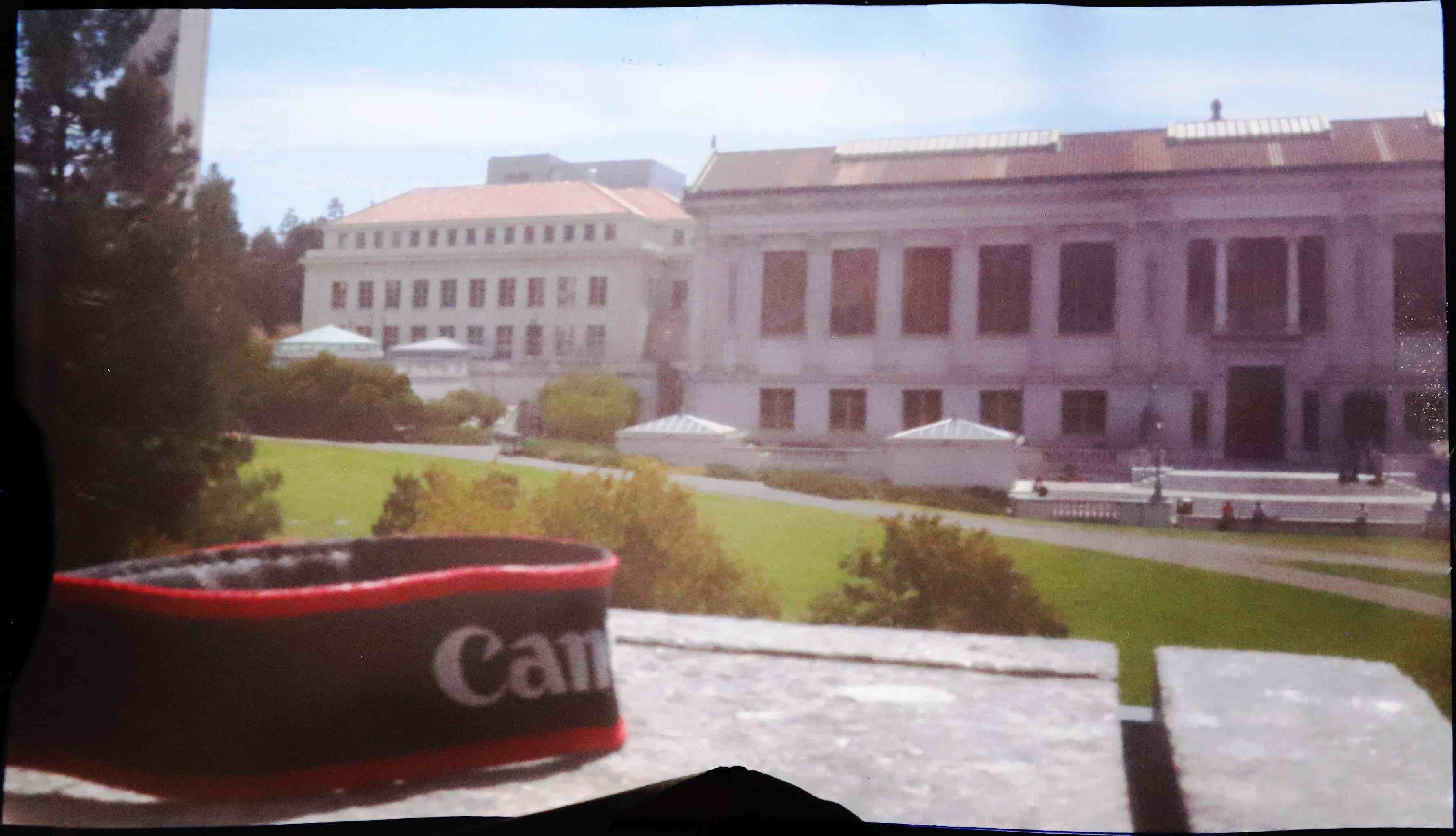

This is the result after cropping and rotating process.

The black borders is almost completely eliminated.

The biggest challenge was to choose a threshold that works for every image and the problem was solved by averaging out the max and min intensities in both rows and columns.

3.2 Image Enhancing

First, I tried to use fuction rescale_intensity in Skimage library to balance the intensity of the image.



Secondly, I tested the with function equalize_hist in Skimage library to balance the histogram.



Then I tried another function called adapthist in the same library to see if it made any difference.



Finally, I combined all three methods above.




These are different results in different apartures, locations, and time in the day

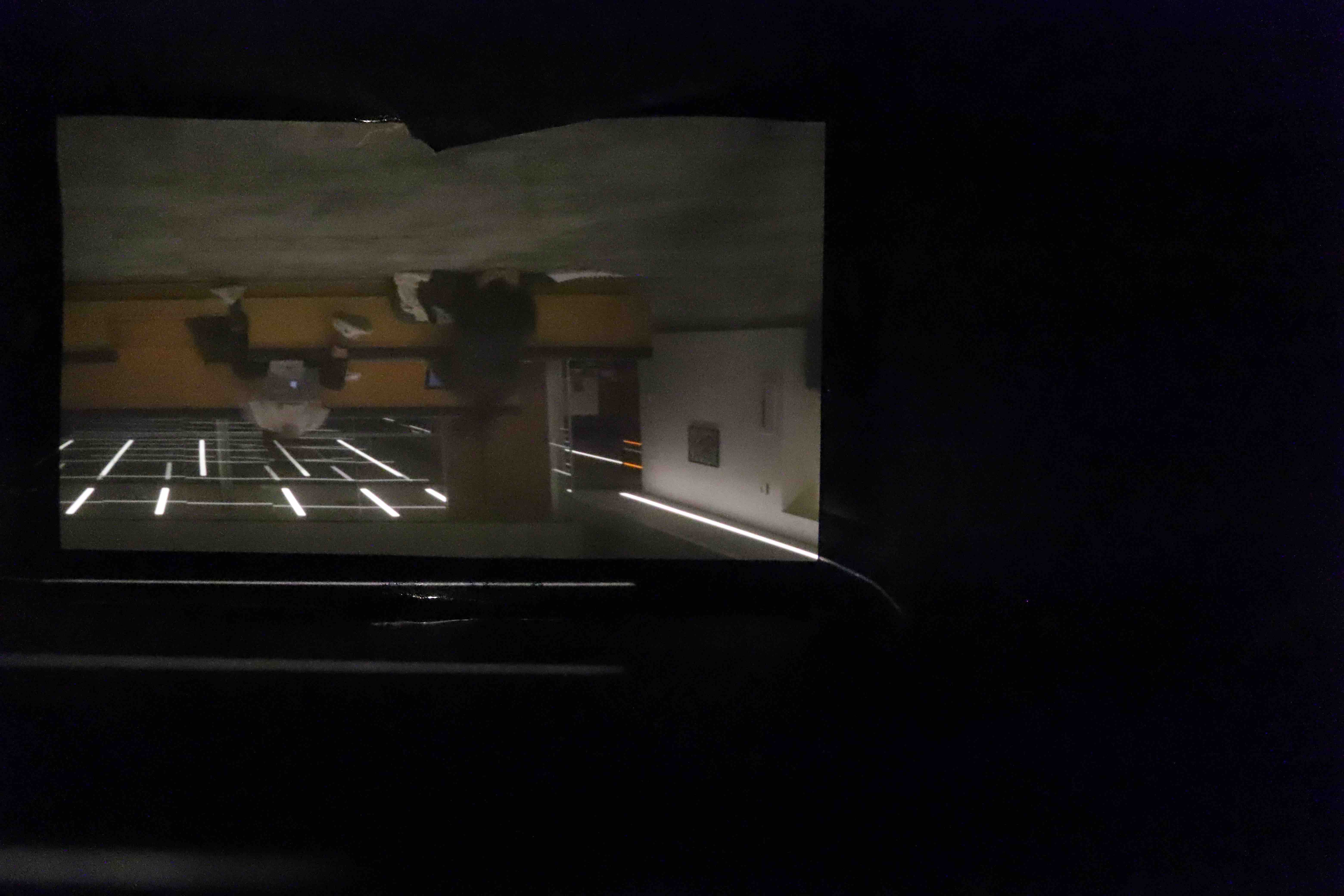

1mm Aperture inside Moffitt Library
f/3.5, ISO 32000, 30 sec

3mm Aperture inside Moffitt Library
f/3.5, ISO 16000, 30 sec

4mm Aperture inside Moffitt Library
f/3.5, ISO 10000, 30 sec

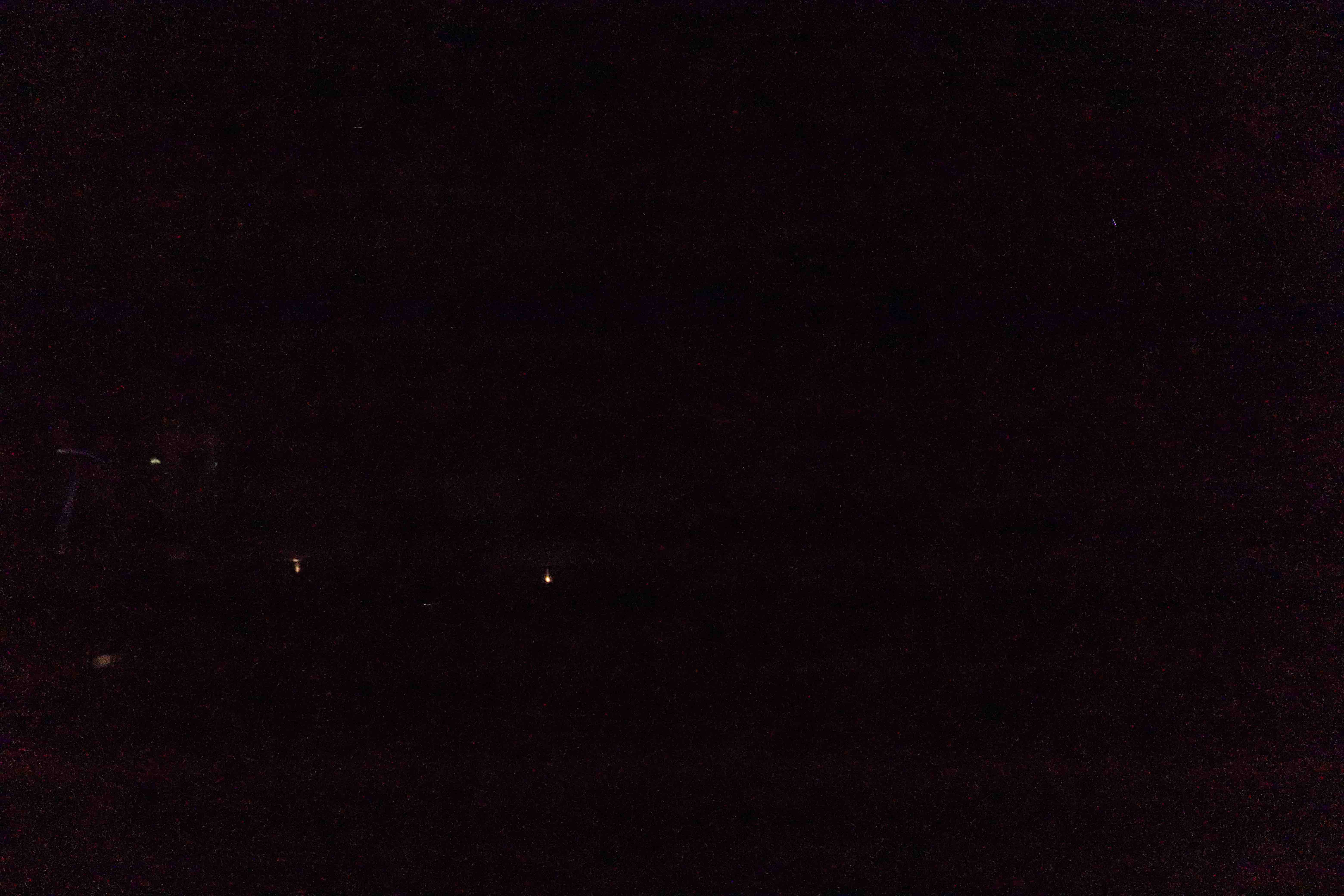

1mm Aperture outside, East Asian Library
f/3.5, ISO 10000, 30 sec

3mm Aperture outside, East Asian Library
f/3.5, ISO 40000, 30 sec

4mm Aperture outside, East Asian Library
f/3.5, ISO 40000, 30 sec
